Standard Air Cylinders (Round Type）

Air Cylinder CG1/CDG1

・Female rod end is available as standard.
・Easy fine adjustment of auto switch position

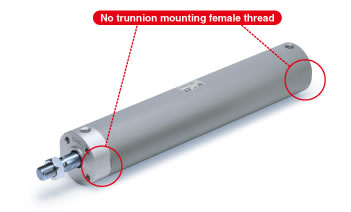

・No trunnion mounting female thread has been added to the basic type.

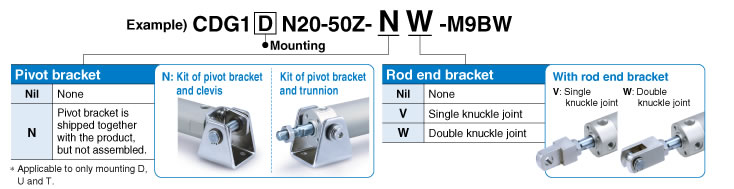

・Part numbers with a rod end bracket and/or pivot bracket are available.
　(It is not necessary to order a bracket for the applicable cylinder separately.)
・With auto switch (CDG1-Z series: CDG1, CDG1W, CDG1K, CDG1KW, CDG1R,
　CDG1KR, CDBG1)

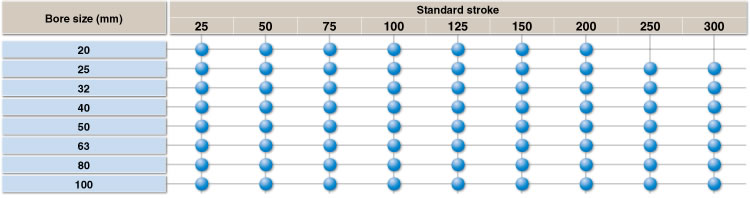

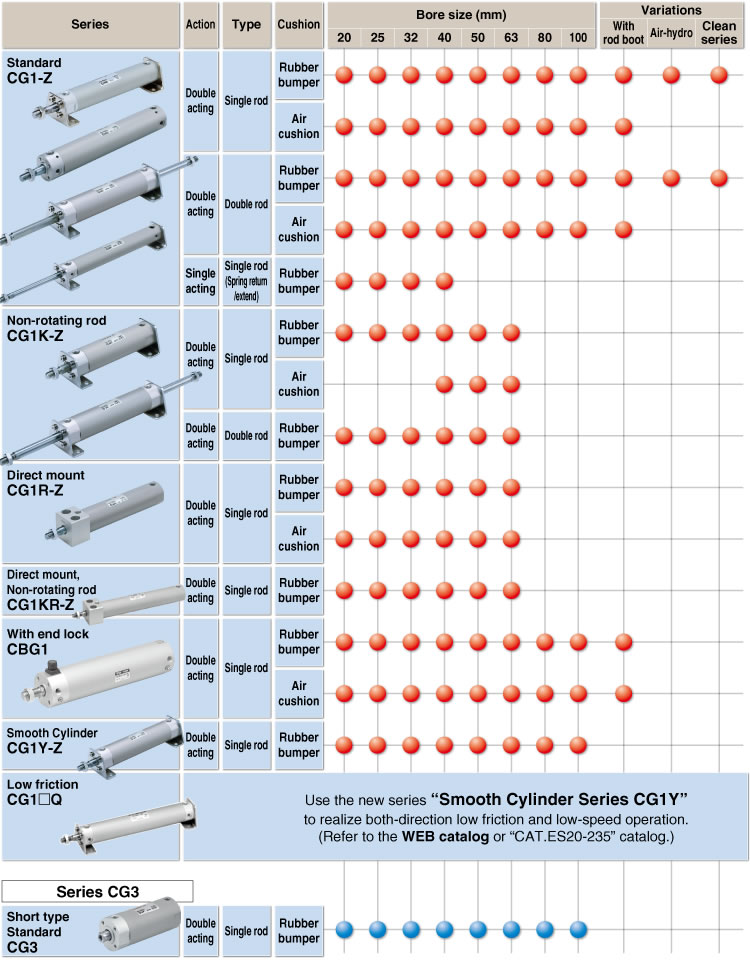

Type	Series	Action	Bore size (mm)
Standard	CG1-Z	Double acting single rod	20，25，32，40，50，63，80，100
Standard	CG1-Z	Single acting (Spring return/extend)	20，25，32，40
Standard	CG1W-Z	Double acting double rod	20，25，32，40，50，63，80，100
Non-rotating rod	CG1K-Z	Double acting single rod	20，25，32，40，50，63
Non-rotating rod	CG1KW-Z	Double acting double rod	20，25，32，40，50，63
Direct mount	CG1R-Z	Double acting single rod	20，25，32，40，50，63
Direct mount, Non-rotating rod	CG1KR-Z	Double acting single rod	20，25，32，40，50，63
With end lock	CBG1	Double acting single rod	20，25，32，40，50，63，80，100
Low friction	CG1□Q	Double acting single rod	20，25，32，40，50，63，80，100

Features

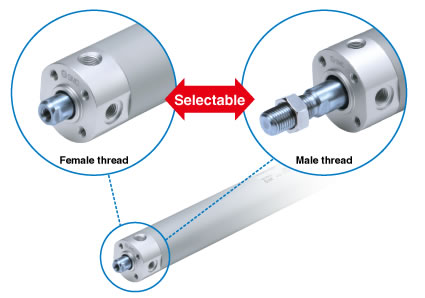

■Female rod end available as standard
Rod end styles suitable for the application can be selected.

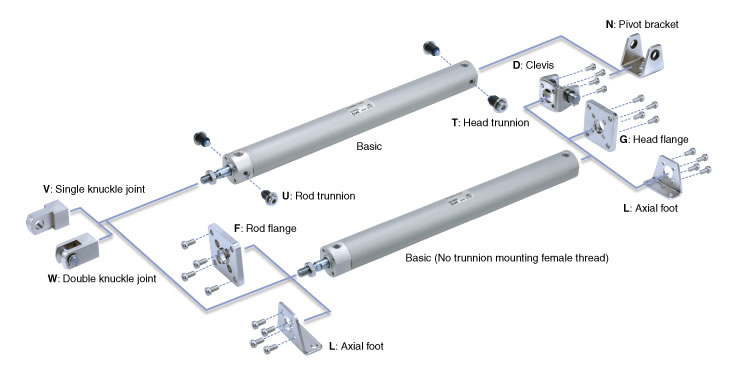

■Various mounting bracket options

Suitable mounting brackets can be selected for the installation condition.
Improved amount of mounting freedom

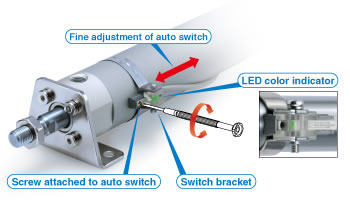

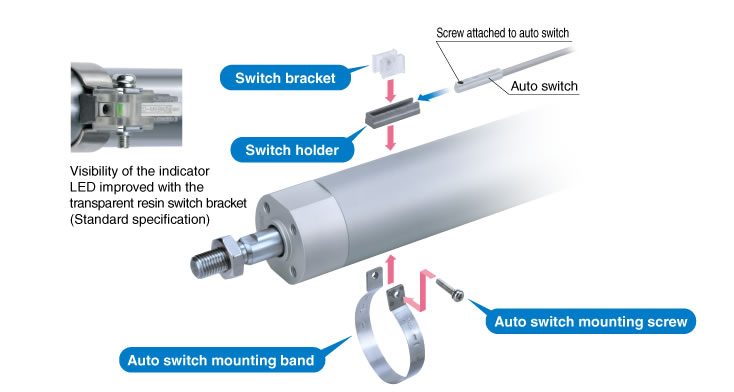

■Easy fine adjustment of auto switch position

Fine adjustment of the auto switch set position can be performed by loosening the auto switch attached screw. Operability improved compared with the conventional auto switch set position adjustment, where the complete switch mounting band requires loosening.
